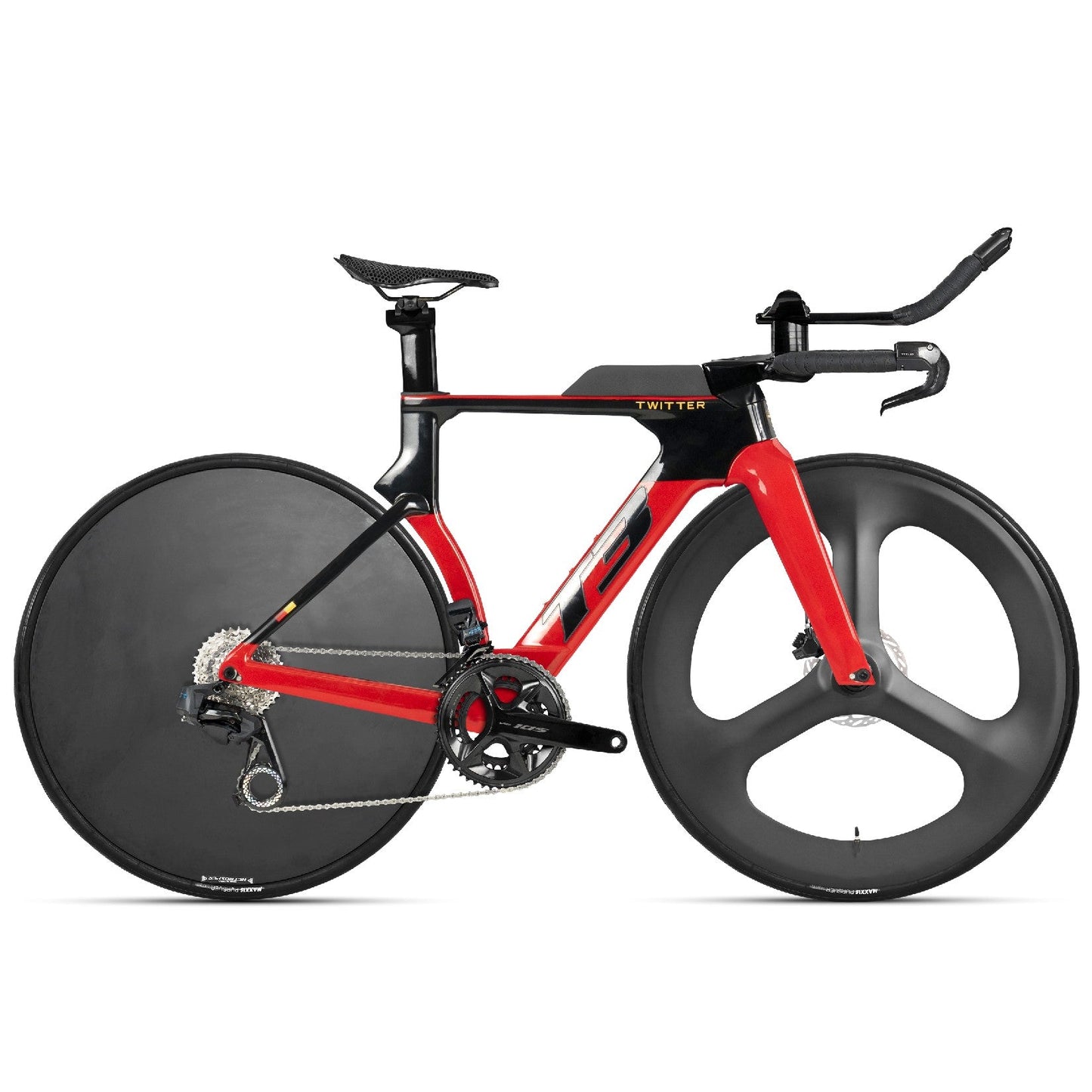

Triathlon T3 Wheeltop Wireless Electric 24S Carbon Road Bike

Specification

Key Components

• Wheel Size: 700C

• Frame Heights: 46 / 48 / 50 / 52 / 54 cm

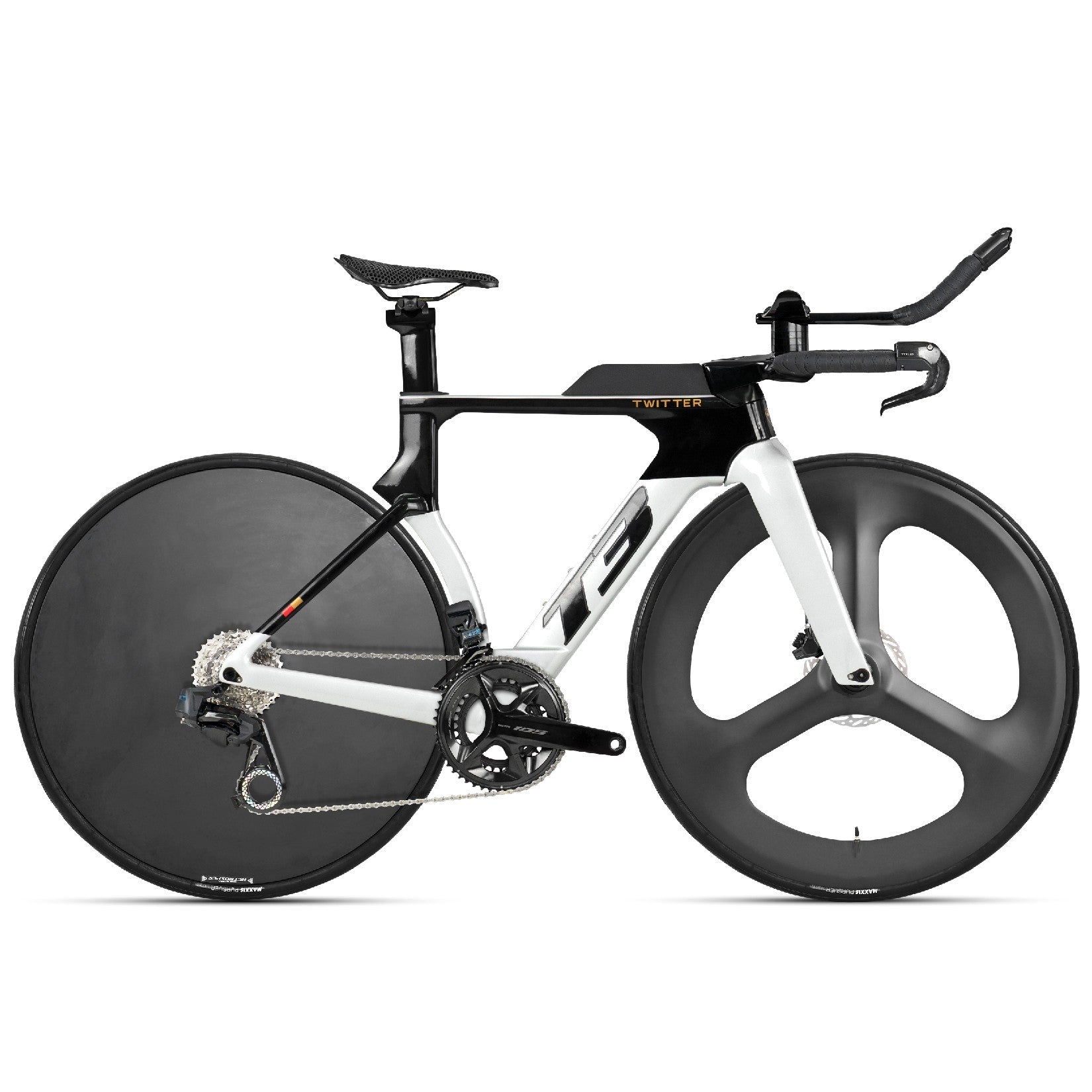

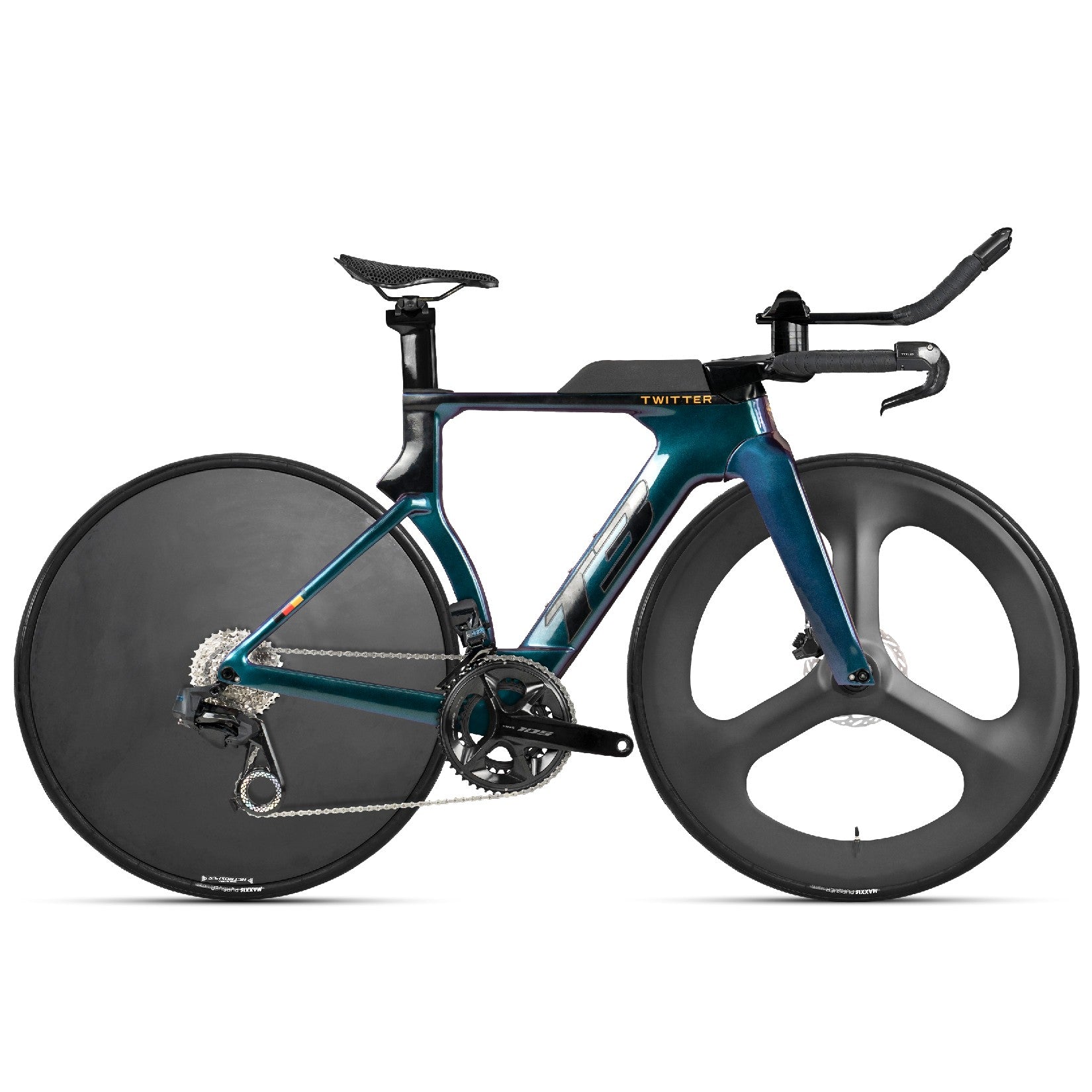

• Bike Colors: Multiple colors available

• Net Weight: 9.2 kg

Frame & Structure

• Frame: T3 (Disc & Thru-Axle 12×142), high modulus Carbon Fiber, TT-Racing, internal cable routing, gloss finish with UV laser decals

• Fork: T3 (Disc & Thru-Axle 12×100), high modulus Carbon Fiber, 700C, TT design

• Seat Post: High modulus Carbon Fiber, Aero-Racing profile

• Handlebar Set: TW high modulus Carbon Fiber, Integrated TT Handlebar & Stem (400×100 mm), Assist handle 45º, Assist Arm 260mm

• Clamps: Hidden screw fit to frame

• Head Set: CNC aluminum alloy with sealed bearings (52×52 mm)

• Bottom Bracket: Threaded T47×24 mm, hollow bearings

• Washer: Aluminum alloy, for internal cable routing

Drivetrain Options

• System: Wheeltop TT7110 Wireless Electric, 2×12-speed

• Shifters: Wheeltop TT7110 Wireless Electric

• Front Derailleur: WheelTop EVO TX Wireless 2-speed

• Rear Derailleur: WheelTop EVO TX Wireless 12-speed Carbon, large carbon jockey wheels

• Crankset: SHIMANO 105/R7100 Hollow, 34/50T

• Cassette: SHIMANO 105/R7100, 12-speed, 11–34T

• Chain: SHIMANO HG6100-12S

• Brakes: Wheeltop Flat full Hydraulic Disc RT70, 160/160 mm

Wheelset & Tires

• Hubs: RS Aluminum & Carbon Fiber, 4 sealed bearings, XD freehub, 24H front / 24H rear, centerlock disc, thru-axle F12×100 / R12×142

• Rims: RS high modulus Carbon Fiber, front 3-spoke wheel & rear disc wheel

• Spokes: Integrated into carbon rims (front tri-spoke / rear disc)

• Tires: MAXXIS PURSUER 700×28C, foldable & lightweight, black

Braking System

• Hydraulic Disc: Wheeltop RT70, 160/160 mm

Additional Components

• Saddle: 3D printed, lightweight & comfortable

• Pedals: RS Aluminum Alloy CNC Bearing, lightweight

• Cables: JAGWIRE performance cables

Included Accessories

• Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)

• Aluminum alloy bottle cage + tools

• Instruction manual + warranty card + Wheeltop charger
