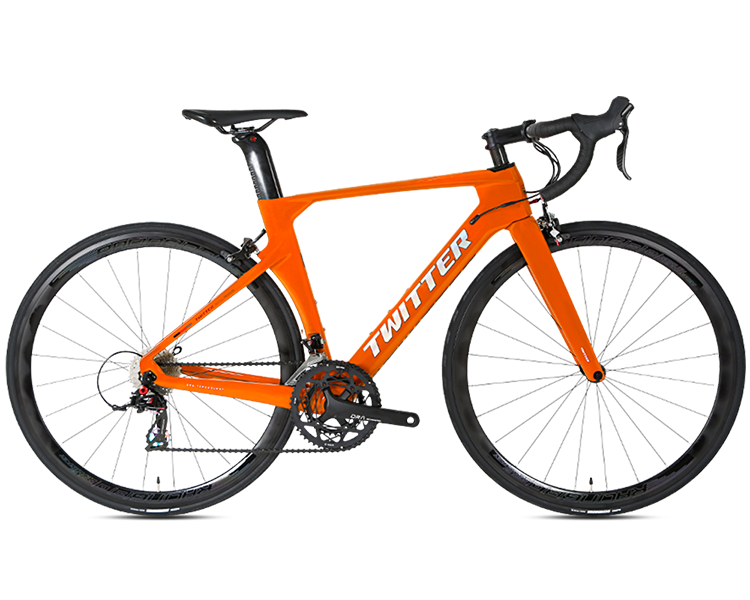

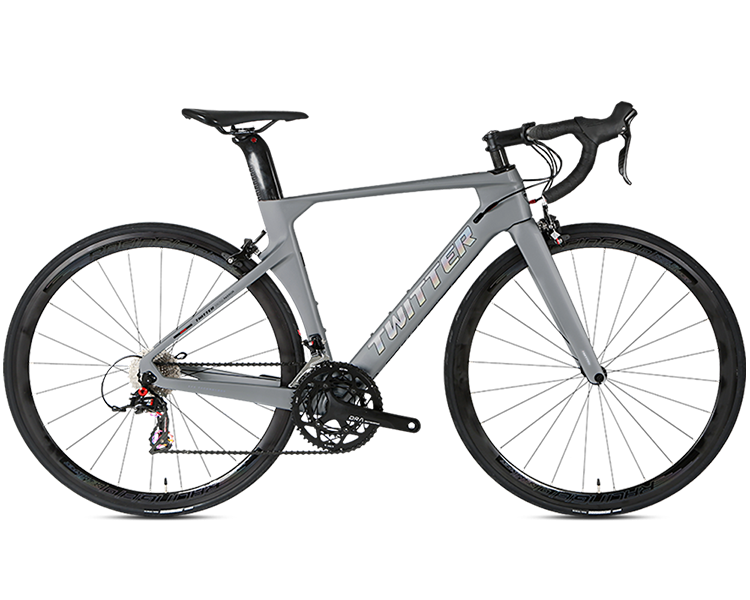

R10 - Rim - Carbon Road Bike

Key Components

• Wheel Size: 700C

• Frame Heights: 43.5 cm / 46 cm / 48 cm / 50 cm / 52 cm / 54 cm

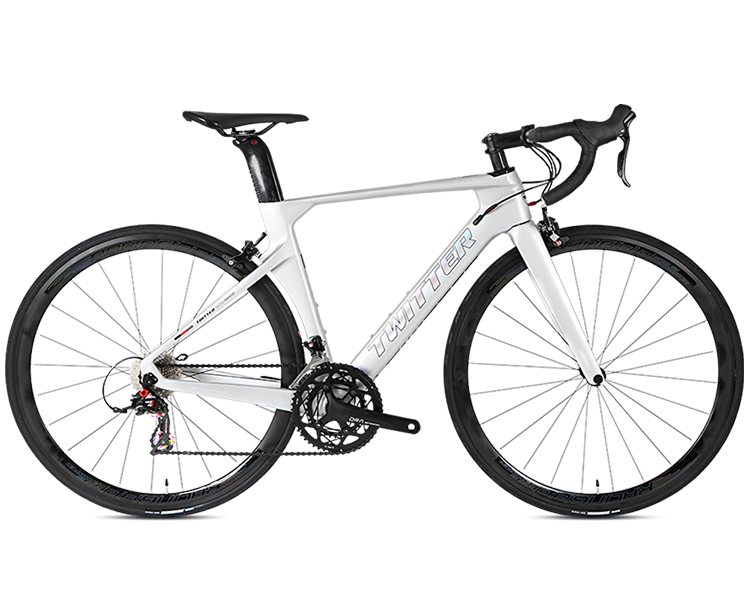

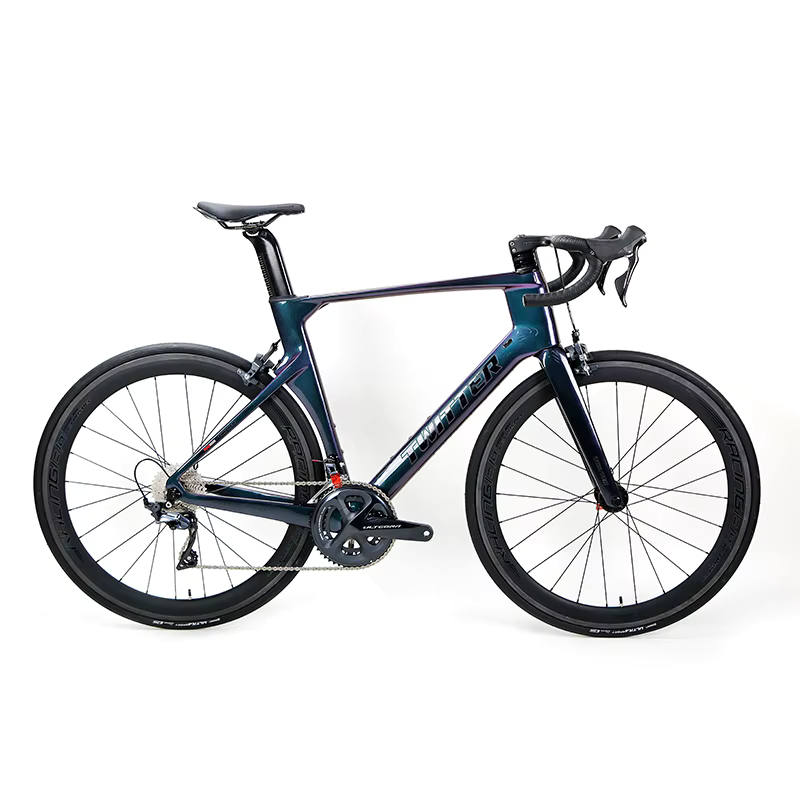

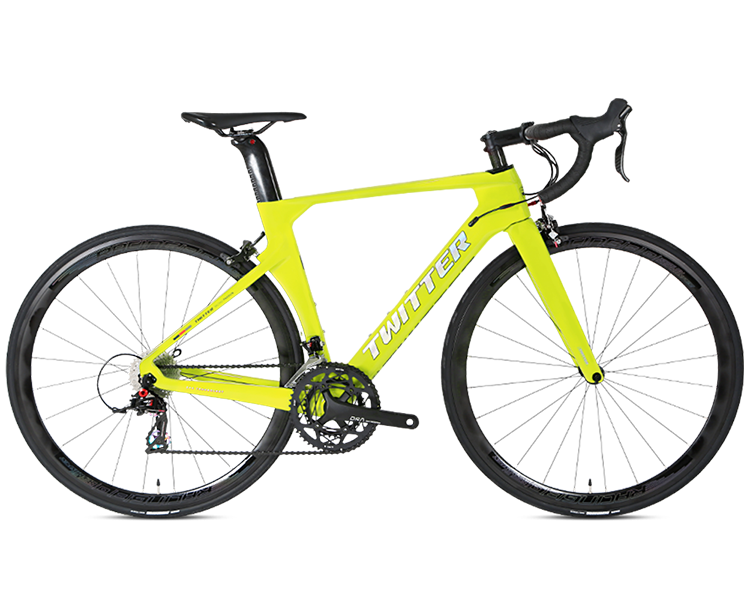

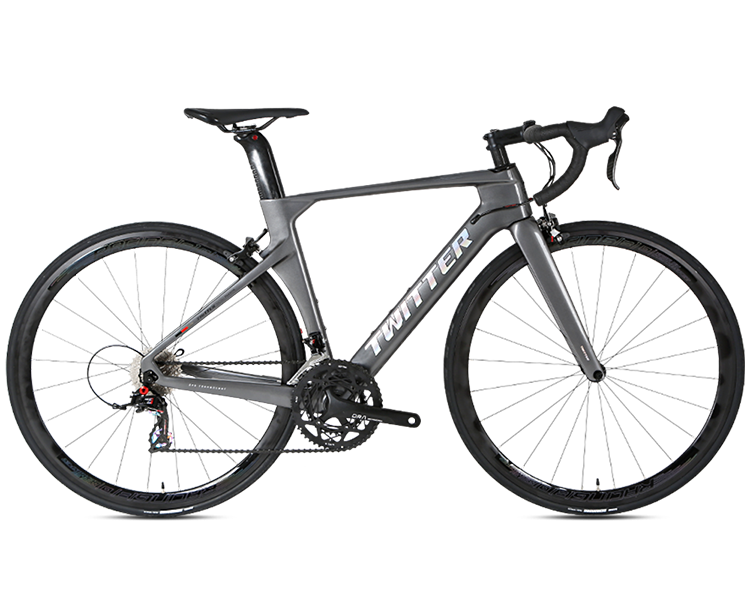

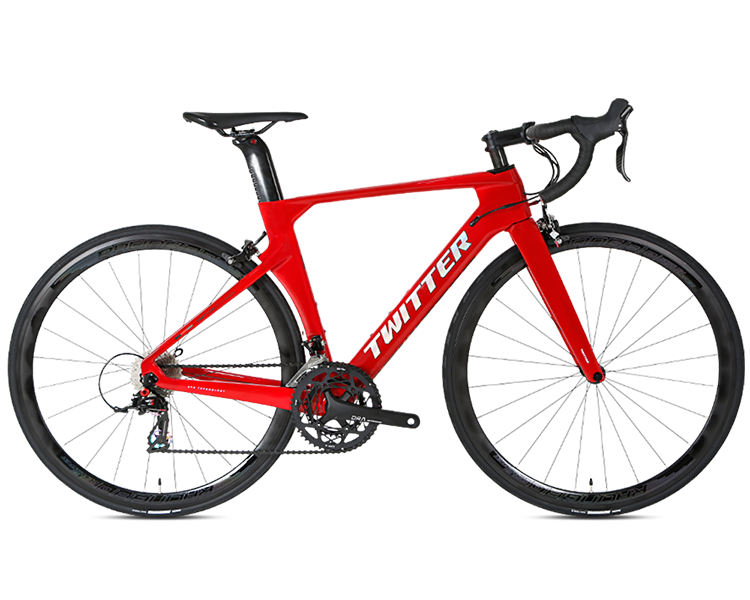

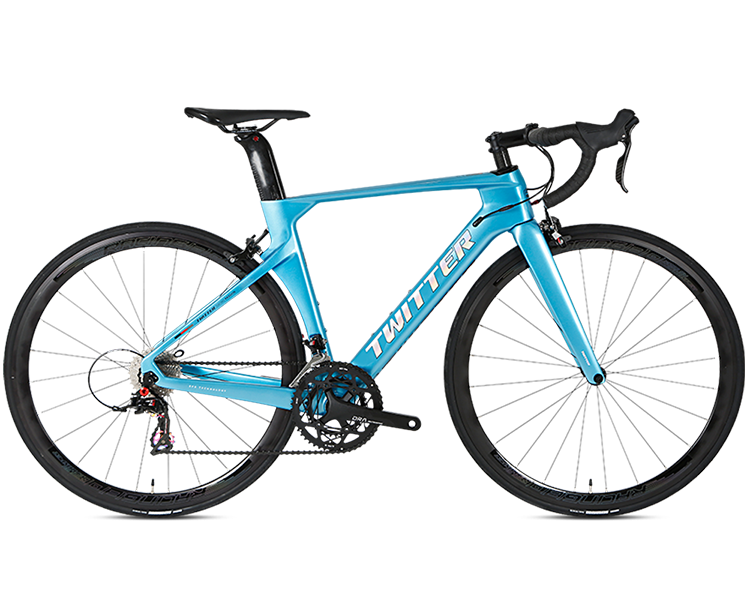

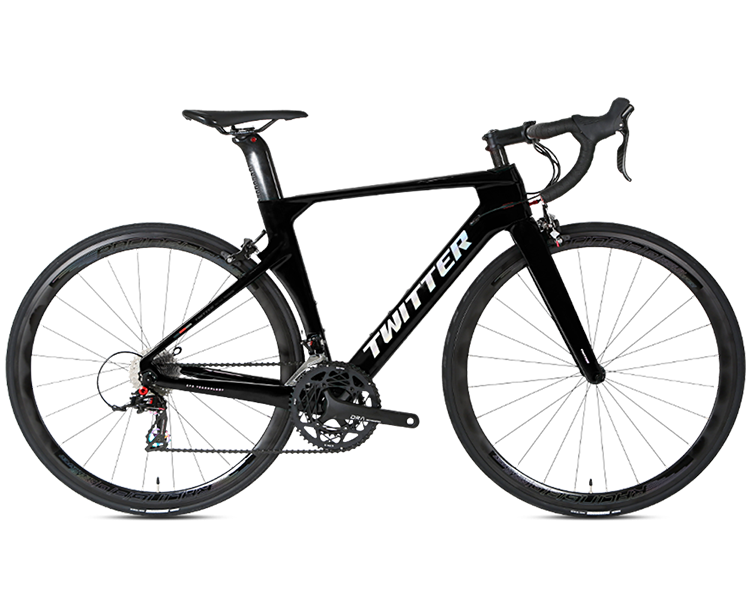

• Bike Colors: Black / White / DarkGray / Others / Full Holographic

Frame & Structure

• Frame: R10- Rim, high modulus Carbon fiber, Aero-Racing, Inner-Cables, QR

• Fork: R10- Rim, high modulus Carbon fiber, 700C, QR

• Handlebar Sets: Alu Alloy & Lightweight, Integrated Handlebar & Stem (400×90 mm), Inner-Cables

• Seat Post: High modulus Carbon fiber, Aero-Racing

• Clamps: Hidden Screw Fit to Frame

• Head Sets: Alu alloy CNC with sealed Bearings, 52×52 mm

• Washer: Carbon fiber, 3 × 28.6 × 10 mm

• Bottom Bracket: BB86 × 46 × 24 mm, pressed, Hollow & sealed Bearings

Cockpit, Contact Points & Small Parts

• Cables: JAGWIRE

• Belt (bar tape): PU, Comfortable & Skid resistant

• Saddle: Comfortable & lightweight for racing

• Pedals: Lightweight & Skid resistant

Braking System

• Brake: RS, Alu alloy Rim C-clamper

Drivetrain & Wheelset Variants

Variant 1 — RS-22S, alloy wheel

• Net Weight: 8.8 kg

• Shifters / Derailleur Handle: RS (SENSAH) 2×11S

• Front Derailleur: RS (SENSAH) 2S

• Rear Derailleur: RS (SENSAH) 11S

• Crankset: Prowheel ARP, Alu alloy, Hollow, 34–50T

• Cassette: SUNSHINE 11S, 11–30T

• Chain: SUMC 11S

• Bottom Bracket: BB86 × 46 × 24 mm, pressed, Hollow & sealed Bearings

• Hubs: RS, Alu alloy & Carbon fiber, 4-sealed Bearings, HG, F16×R21h, QR

• Rims: RS, Alu alloy AL7005, Double wall, W21 × H30 mm

• Spokes: SHUNJIU, Circular 14G

• Tires: INNOVA-PRO, 700×28C, Black

Variant 2 — RIVAL-22S, alloy wheel

• Net Weight: 8.8 kg

• Shifters / Derailleur Handle: SRAM RIVAL 2×11S

• Front Derailleur: SRAM RIVAL 2S

• Rear Derailleur: SRAM RIVAL 11S

• Crankset: Prowheel ARP, Alu alloy, Hollow, 34–50T

• Cassette: SUNSHINE 11S, 11–30T

• Chain: SUMC 11S

• Bottom Bracket: BB86 × 46 × 24 mm, pressed, Hollow & sealed Bearings

• Hubs: RS, Alu alloy & Carbon fiber, 4-sealed Bearings, HG, F16×R21h, QR

• Rims: RS, Alu alloy AL7005, Double wall, W21 × H30 mm

• Spokes: SHUNJIU, Circular 14G

• Tires: INNOVA-PRO, 700×28C, Black

Variant 3 — RS-22S, 30H carbon wheel

• Net Weight: 8.5 kg

• Shifters / Derailleur Handle: RS (SENSAH) 2×11S

• Front Derailleur: RS (SENSAH) 2S

• Rear Derailleur: RS (SENSAH) 11S

• Crankset: Prowheel ARP, Alu alloy, Hollow, 34–50T

• Cassette: SUNSHINE 11S, 11–30T

• Chain: SUMC 11S

• Bottom Bracket: BB86 × 46 × 24 mm, pressed, Hollow & sealed Bearings

• Hubs: RS, Alu alloy & Carbon fiber, 4-sealed Bearings, HG, F16×R21h, QR

• Rims: RS, high modulus Carbon fiber & Flat, W25 × H30 mm (30H)

• Spokes: SHUNJIU, Circular 14G

• Tires: INNOVA-PRO, 700×28C, Black

Variant 4 — RIVAL-22S, 30H carbon wheel

• Net Weight: 8.5 kg

• Shifters / Derailleur Handle: SRAM RIVAL 2×11S

• Front Derailleur: SRAM RIVAL 2S

• Rear Derailleur: SRAM RIVAL 11S

• Crankset: Prowheel ARP, Alu alloy, Hollow, 34–50T

• Cassette: SUNSHINE 11S, 11–30T

• Chain: SUMC 11S

• Bottom Bracket: BB86 × 46 × 24 mm, pressed, Hollow & sealed Bearings

• Hubs: RS, Alu alloy & Carbon fiber, 4-sealed Bearings, HG, F16×R21h, QR

• Rims: RS, high modulus Carbon fiber & Flat, W25 × H30 mm (30H)

• Spokes: SHUNJIU, Circular 14G

• Tires: INNOVA-PRO, 700×28C, Black

Included Accessories

• Standard safety reflector (Handlebar + Seat post + Front wheel + Rear wheel)

• PC bottle cage + Tools

• Manual + Warranty card
